This guide includes a conceptual introduction to the BARS system, the model used by the EuroScope client, and the process of administering aerodrome data via the BARS for EuroScope editor. It is aimed at division staff configuring the BARS plugin for their aerodromes, as well as prospective contributors and others desiring a technical understanding of the plugin internals.

​
BARS Overview

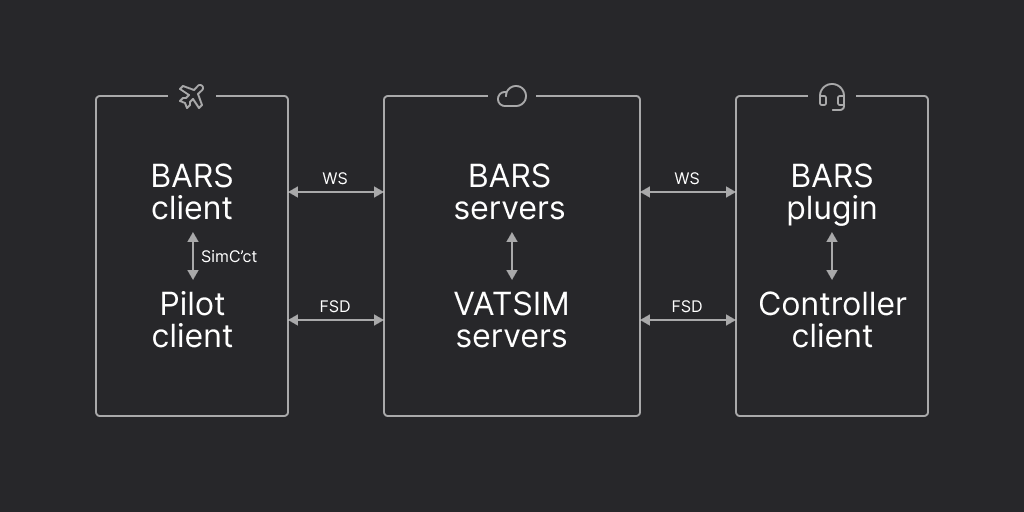

BARS is a system which permits controllers to control the appearance of variable scenery objects (invariably aerodrome ground lights) for pilots. BARS operates as a network separate from the main VATSIM network, similarly to other peripheral systems (like Audio for VATSIM). The BARS clients attach to the relevant VATSIM client – pilot clients for pilots, or EuroScope for controllers – and connect them to the central BARS servers. The servers are responsible for verifying the state of clients against the VATSIM servers, and conveying data between all connected clients.
BARS Network Structure
To use BARS, controllers must connect to the BARS network at one or more aerodromes under their control. These controllers may then send updates to the state of individual lights, setting them on or off. The BARS server forwards these updates to any pilots at the relevant aerodrome, and the changes are displayed to the pilot in the scenery. To do this, two sets of data are required.
The addition of the EuroScope configuration increases this to three, but the first is directly associated with, and is edited alongside, the EuroScope configuration.
1

Canonical Object Data

The first is thce canonical object data. It consists of the approximate geographic locations of the objects, and their basic properties: lighting colour, directionality, etc. Each object is here assigned a unique BARS ID, which starts with BARS_. This data is defined by the nominated division staff members for each aerodrome they wish to be added to the BARS network. Only those division members with the requisite permissions are able to submit and edit this data. For divisions using the EuroScope client, this data is edited and submitted by using the EuroScope data editor.
2

Scenery Position Data

The second is the scenery position data. This data derives from the canonical data, but is specific to a given scenery for an aerodrome; thus, whilst each aerodrome has only one set of canonical object data, it may have many scenery position data sets, for each of the available scenery providers. It specifies the actual displayed location of the objects (since this may vary slightly between scenery providers), but not how they appear. This data is provided by third-party contributors working from the canonical data.

​
The EuroScope Model

Due to the relative complexity of lighting systems used outside Australia, particularly of “follow-the-greens” selective lighting systems, the EuroScope client for BARS defines are more abstract model of lighting control which permits greater flexibility. Thus, a third data set is required: the Euroscope configuration.

​
Graphs

Instead of having controllers set the state of lights directly, the EuroScope client keeps track of a lighting graph, which is edited by the controller. The state of individual lights is then computed based on the lighting graph. For example, if a controller wishes to lower a stopbar, the object displaying the red stopbar must be set to the off state, and the lead-on lights behind it must be set to the on state. Rather than treating these as separate actions, the EuroScope client considers the two lights to be controlled by one element of the lighting graph; so, when the controller changes the state of this element in the graph, both lights change accordingly as one operation.
The “graph” in “lighting graph” refers to the mathematical sense and not that of a chart used for data visualisation.

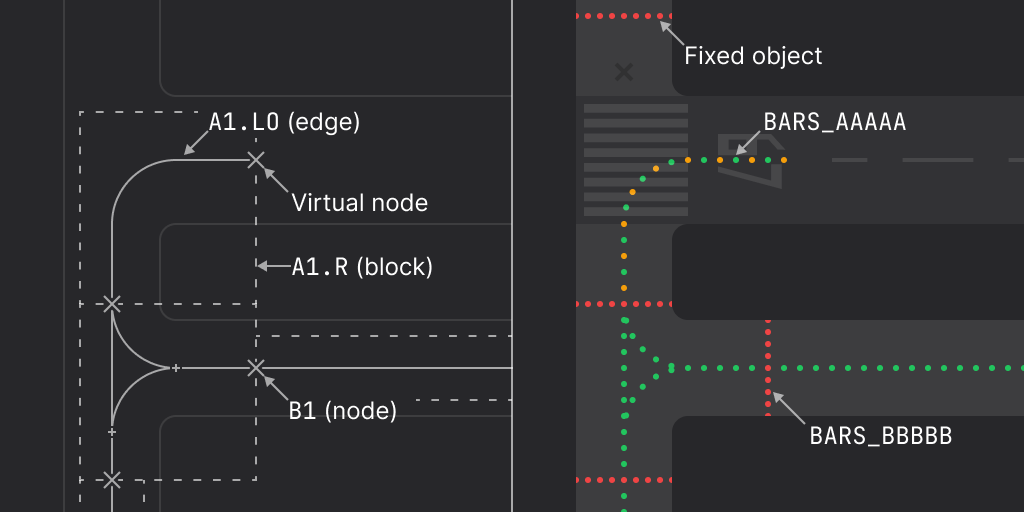

When a controller changes the graph, it is the graph that is synchronised with other controllers at the aerodrome, not the calcualted state of the lights. This lets controllers more accurately see the state of the aerodrome, and better reflects the way real-world systems work. The graph for each aerodrome consists of three types of element: nodes, edges, and blocks. Objects are linked to either one node or one edge in the graph, or are set to a fixed state (on or off). Objects that are not linked to any element are called fixed objects. Elements that are not linked to any object are called virtual elements. Every element is assigned a unique EuroScope ID.
BARS Graph
For those familiar with the mathematical definition, the lighting graph is formally defined as a possibly-disconnected undirected simple graph, where nodes have their usual definitions. Edges may be edges in the graph, or may actually be disconnected nodes. Loops are not permitted. The routing graph may contain additional unlabeled nodes which are not considered nodes in the lighting graph. Blocks are connected subgraphs where the edge sets of all blocks for an aerodrome are disjoint. The difference in the edge set between a block and the equivalent induced subgraph must either be empty or a subset of another block. Blocks may partially or wholly orienting, in which case the overall graph is permitted to be a multigraph with up to two parallel edges per node pair as long as each is oriented in opposite directions by the associated block. A node is a “point” in the graph; it usually represents a stopbar. Nodes may be disconnected, or they can connect to other nodes via edges. A node is used for a light where the controller should be able to directly control it (such as runway holding point stopbars), or it is the terminus of a route (at block boundaries in follow-the-greens). The state of a node is Boolean: either on or off. An edge is a “line” in the graph; it usually represents a taxiway centreline. An edge is used for a light where its state is determined by the state of a node (the lead-on lights following a stopbar, which are interlocked therewith), or the that of a route (centrelines in follow-the-greens). Controllers can only indirectly set the state of edges; they are considered outputs, not inputs. The state of an edge is Boolean: either on or off. For follow-the-greens only, blocks are defined to permit routes to be drawn across the aerodrome. A block is a group of nodes and edges representing the smallest, indivisible segment of a route. Usually, blocks map one-to-one with routing blocks (sometimes known by other names, such as “maintenance blocks”) in the real world. Blocks touch each other at nodes, and routes are set by joining up routes within individual blocks. A block can have three states:

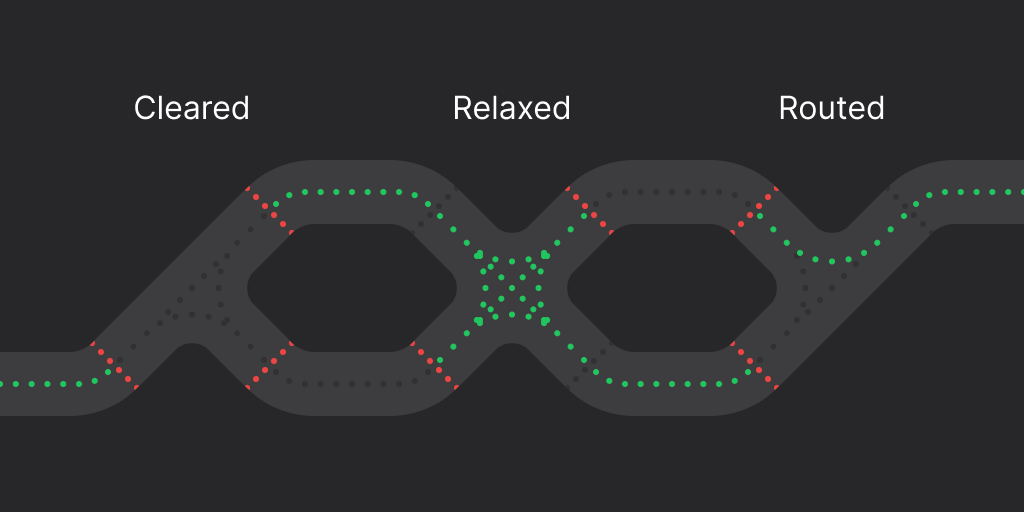

  • cleared, where no route is set through the block and all centrelines are off;
  • relaxed, where no specific route is set through the block, but all routes are enabled and all centrelines are on; and
  • routed, where an ordered pair of nodes associated with the block are nominated as the start and end points of the route segment.
EuroScope Blocks

​
Profiles

Each aerodrome, in addition to its graph, is assigned one or more profiles. Profiles determine how the geometry of the graph is used to calculate the state of lights, and how controllers interact with the graph. Whilst they cannot change the shape of the graph itself, they can still significantly affect how the aerodrome lights function, with unlimited flexibility. Profiles can be used to define different modes of using the lights, such as a “daytime” mode with only runway stopbars in use, and a “low visibility” mode which enables FTGs. When BARS is in use at an aerodrome, only one profile is active at any time. If a controller changes the profile in use, this change is seen by all other controllers at the aerodrome. A profile is defined by a fixed identifier, and a human-readable name that the controller sees. Each profile contains the condition for every element in the aerodrome graph, and zero or more presets. Nodes can be in one of three conditions:
  • fixed sets the node to a fixed state of either on or off;
  • direct makes the node directly settable by the controller, who can toggle it on or off by clicking it; and
  • router indicates that the node should be used as a FTGs node, where setting the associated sticky attribute indiciates that the node must be clicked individually as part of a route, and can not be auto-routed through.
Edges can be in one of three conditions:
  • fixed sets the edge to a fixed state of either on or off;
  • direct makes the edge’s state the result of a Boolean expression of node states in disjunctive normal form; and
  • router indicates that the edge should be used as a FTGs edge.
Blocks can be either activated or deactivated, but this is residual and implied by whether any of their associated nodes and edges are in router mode. Nodes in direct mode and active blocks can have a reset time specified as part of the condition. When the node is set to the off state, or a route is set through the block, a countdown is started, after which time the node/block is reset. Presets consist of a human-readable name and a list of nodes and blocks. When selected by a controller, the preset will set these elements to the specified states. This can be used to, for example, define a sane “default” state, or standard follow-the-greens routes.

​
Router Mode

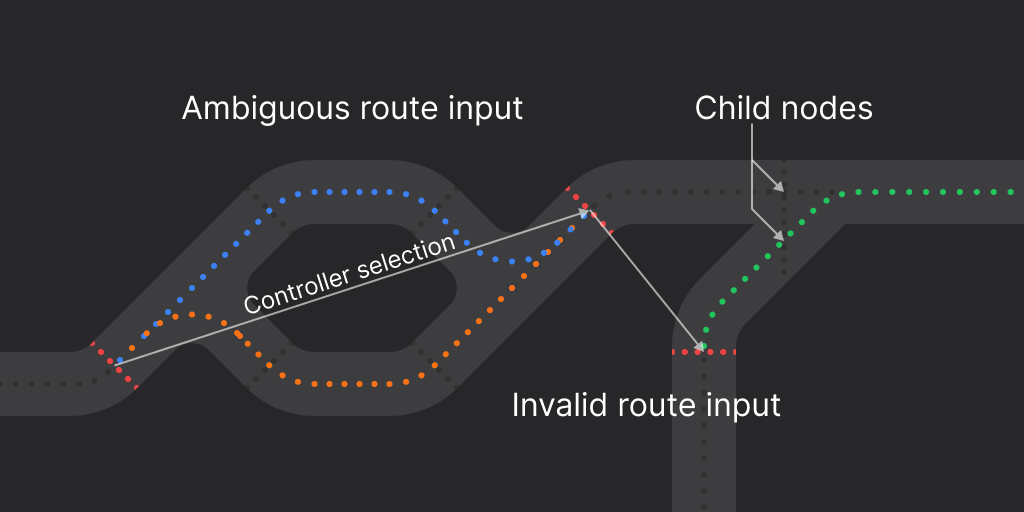

The router mode is the engine which powers the follow-the-greens logic. In theory, the router would construct routes between nodes by tracing routes along edges, and illuminating the shortest/best path. However, for various reasons, and in line with real-world systems, these routes are instead calculated in advance and “baked” into the configuration. Thus, when picking routes, the router ignores the actual edges in the aerodrome graph, and replaces them with edges defined by the blocks. The controller sets a route by clicking nodes in router mode in sequence. The router will attempt to find a route between the selected nodes, routing through multiple blocks if possible. This process can fail in two ways: if the route endpoints selected have multiple possible routes therebetween, the input is ambiguous and fails; if the required route through a block is not permitted by the block (typically as a result of taxiway geometry), or the two endpoints are otherwise disconnected in the taxiway network, the input is invalid and also fails. There exists some additional complexity when a stopbar at the border of a block is crossed by multiple centrelines. In this case, child nodes are created for each of the intersections at the node, which becomes known as the parent node. This is handled transparently in configuration, and is solved at runtime by the router.
EuroScope Router
Sometimes, it may be necessary to have routes be settable through multiple blocks, but without allowing routes to terminate at certain intermediate nodes. The prototypical example of this is for routes set at runway holding points with both standard and ILS hold lines. When the ILS hold lines are not in use, it should not be possible to set a route terminating thereat; similarly, when they are in use, it should not be possible to set a route terminating at the standard line. To achieve this, the node pertaining to the line not in use should have its condition set to fixed-off in the relevant profile. It will then be ignored when the router attempts to find a route, and will not be displayed to the controller. For a given set route, the resultant states of nodes and blocks is defined by basic rules. Each node in router mode is off only if there is a route set going “through” the node; that is, in both blocks on each side of the node, a route is set which contains the node. Each edge in router mode is on only if, for the block containing the edge, the block is relaxed, or the pair of nodes defining the route in the block is contained within a list of matching pairs associated with the edge.

​
Maps

The maps define how elements (not objects) are shown to the controller. Each aerodrome can have one geographic map, defined in terms of geographic coordinates and drawn on the EuroScope radar (SMR), and zero or more standalone non-geographic maps, defined in Cartesian coordinates and drawn on a separate lighting panel. Non-geographic maps can define a background colour and base map consisting of static vectors. All maps then contain vector layers for nodes, edges, and blocks; for nodes, these layers are the off, on, and selected states, plus the hotspot polygon used to click the node; for edges, these layers are the off, on, and pending states; for blocks, this is the hotspot polygon used to click the block. All of these can be empty if the element should not be visible, or should not be interactable.
It may be desirable in some cases for controllers to have a “read-only” view of the aerodrome lights, particularly in the SMR view. However, It is not necessary for divisions to configure maps with no targets for this purpose, as the plugin provides this functionality natively.
All maps can then contain a layer of widgets. The available select of widgets is liable to change, so they are not listed in detail here; they should be configured using the EuroScope data editor. Non-geographic maps must define a list of views. Each view has a name and an axis-aligned rectangle defining the viewport. Controllers are asked to select a view (not a map) when opening a lighting panel ASR, from the aggregate list of all views for all non-geographic maps for the current aerodrome.

​
The EuroScope Data Editor

The EuroScope data editor is the only recommended means by which divisions using the EuroScope plugin should configure it and edit their canonical object data. For guidance on using the editor, please see the tutorial video.

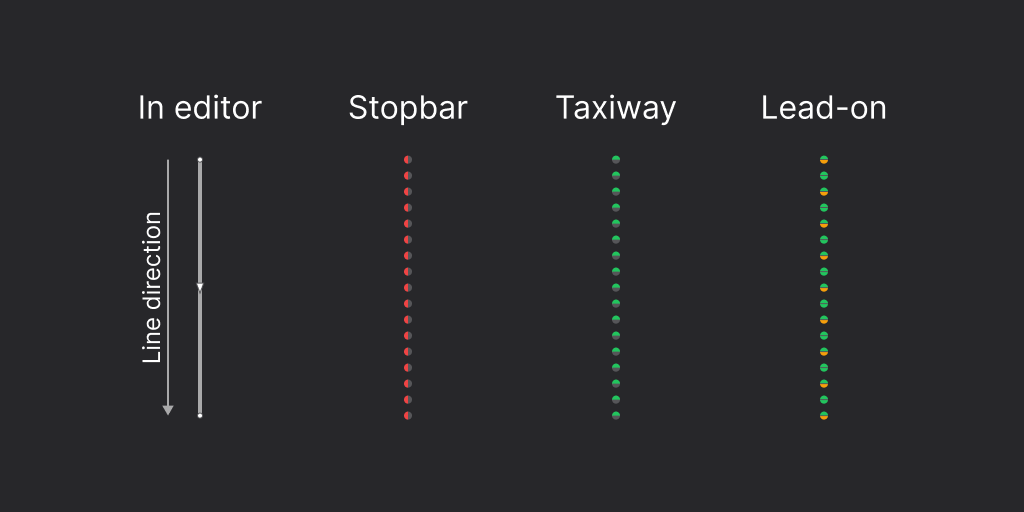

Note that unidirectional lights are generated based on the order of their points when drawn.
Orientation of unidirectional lights

​
Distributing BARS

It is recommended that divisions provide a copy of the BARS plugin and the necessary configuration files as part of their controller pack. Whilst the plugin does update itself, and so existing users need not install new versions of the loader, it is recommended that divisions keep the loader they distribute up-to-date. The BARS plugin should be placed in its own directory in the pack. By convention, this is named “bars”, but this is not mandatory. Within this directory, three configuration files are of note. Further documentation pertaining to configuration will be provided soon.
